Note: All Item Numbers and OEM Numbers are higlighted in Red to help the viewer to pick out the correct part. All part numbers and descriptions are listed in black to match the appropriate items. All Descriptions and Dimensions are listed underneath the part number. PLEASE DO NOT give us the OEM number when ordering a part.
(1) b91354X, B91354
HUB and spindle kit FOR 470-501. complete assembly. (BOXED) (wt., 19.47)

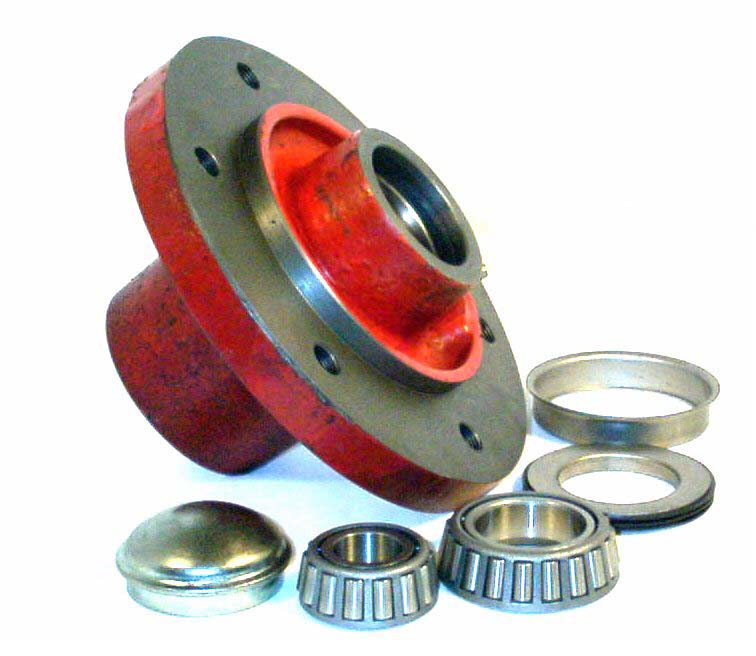

(2) ap465493r1, 465493r1
hub kit FOR 470-501. contains hub & bearing kit.

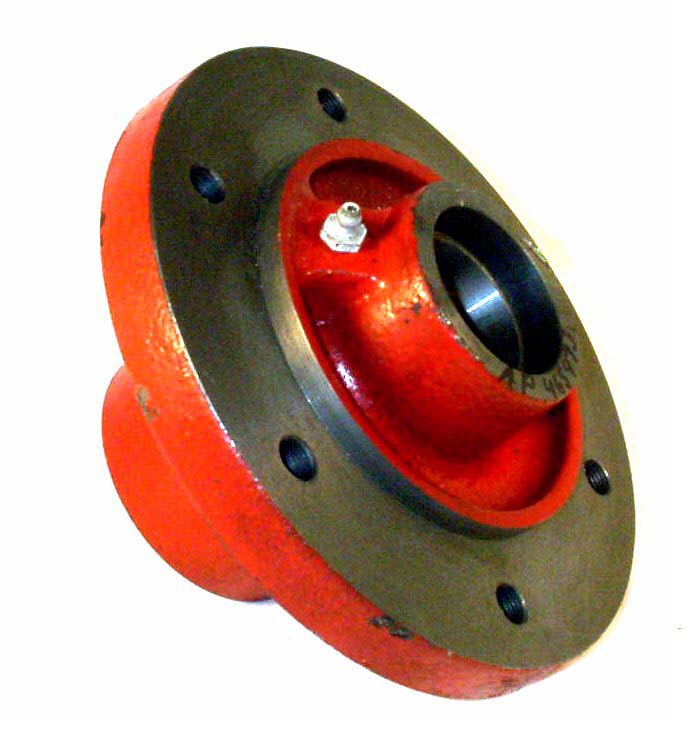

(3) ap465493, 465493r2
HUB, W/CUPS - FOR MODEL 470-501 IH DISC TRANSPORT WHEEL ASSEMBLY.
(wt., 11.82)
(4) 943549, —
lug bolt for ap465493 hub. (wt., .12)
(5) 913608, 369857R1
WASHER, SPINDLE - FOR 478375R1 SPINDLE. (wt., .05)
(6) 912945, 69442D
NUT, SPINDLE 3/4" - FOR 478375R1 SPINDLE. (wt., .06)
(7) ap470496, —
TUBE, SPINDLE - (WELD IN) FOR MODEL 470-496 CASE
IH DISC TRANSPORT WHEEL AXLE ASSy. #481474r93. (wt., 6.69)
(8) ap478375, 478375R1
SPINDLE, HUB - FOR MODEL 470-501 IH DISC TRANSPORT WHEEL ASSEMBLY. (wt., 5.57)
(9) ap63881, 63881C92
KIT, BEARING - FOR MODEL 470-501 IH DISC TRANSPORT (wt., 1.30)
WHEEL ASSEMBLY W/HUB # 465493R1. contains:
lm48548, 371882r91 bearing
lm48510, 371883r1 cup
m12649, 618023r91 bearing
m12610, 618024r1 cup
ap667564, 667564 retainer
ap667599, 667599r92 seal
909917, 663908r1 dust cap
(10) 909917, 663908R1
DUST CAP FOR 465493 HUB. (wt., .14)
