Note: All Item Numbers and OEM Numbers are higlighted in Red to help the viewer to pick out the correct part. All part numbers and descriptions are listed in black to match the appropriate items. All Descriptions and Dimensions are listed underneath the part number. PLEASE DO NOT give us the OEM number when ordering a part.

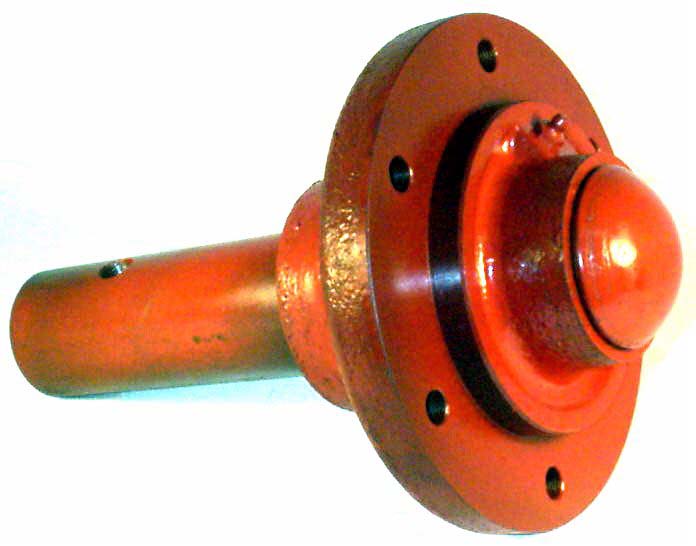

(1) b91353X, B91353
HUB and spindle assembly for 496. heavy duty (BOXED)
(after 1987) 770, 780, 3800, 3900)
(wt., 22.00)

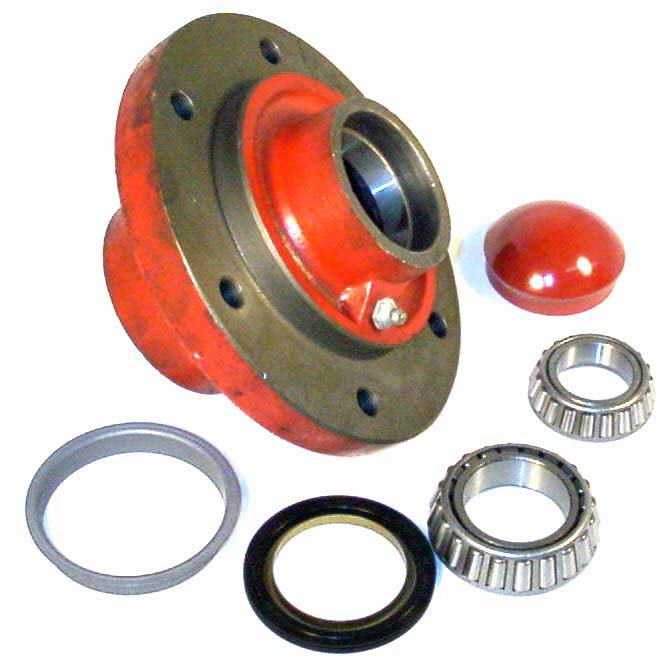

(2) ap606468k, ---
hub kit FOR b91353x - 496 disc. contains hub and bearing kit.
(3) ap606468, 606468r21
HUB, W/CUPS - FOR MODEL 496 - transport wheels. (wt., 12.00)
(4) ap663906, 663906
dust cap for ap606468. (wt., .22)
(5) ap1978726, 1978726c1
SPINDLE for b91353x hub. (wt., 7.90)

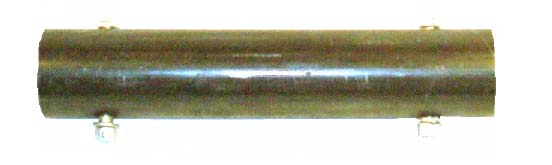

(6) AP496WT, ----
WELD TUBE FOR AP1978726 SPINDLE. (wt., 12.16)
(7) ap123096, 123096a2
KIT, BEARING - FOR MODEL 606468r21. (wt., 1.24)
contains:
lm67048 651815r91 bearing
lm67010 651817r1 cup
Lm501349 663557r91 bearing
lm501310 663558r1 cup
ap594703 594703r1 retainer
ap594702 594702r91 seal
(8) ap3950, —
Bearing kit for 8 bolt hub on 3950 disc. (wt., 2.15)
Contains:
lm501310 — cup
lm501349 — bearing
jlm506849 — bearing
jlm506810 — cup
ap169329 169329c1 seal
ap169328 169328c1 wear sleeve
