Replacement Parts for CASE - INTERNATIONAL DISC

made in u.s.a.

all axles are 1-1/8" square

(1)

(2)

Note: All Item Numbers and OEM Numbers are higlighted in Red to help the viewer to pick out the correct part. All part numbers and descriptions are listed in black to match the appropriate items. All Descriptions and Dimensions are listed underneath the part number. PLEASE DO NOT give us the OEM number when ordering a part.


ap118x335, —
AXLE, 118 x 33.5. (wt., 12.00)

ap468607, 468607R1
AXLE, GANG - FOR MODEL 470 IH DISC. (wt., 14.00)
LENGTH ( 40 1/4" )

ap471014, 471014r1
AXLE, GANG (wt., 17.00)
length ( 49.0)

ap471015, 471015r1
axle, gang. (wt., 20.00)
length ( 57.6)

ap652939, 652939R2
AXLE, GANG - FOR MODEL 470, 475, 480, 490 & 496. (wt., 23.95)
LENGTH ( 67.4" )

ap472586, 472586R2
AXLE, GANG - FOR MODEL 490 IH DISC. (wt., 25.00)
LENGTH ( 71.9" )

ap468582, 468582R2
AXLE, GANG - FOR MODEL 470, 475, 480, 490 & 496. (wt., 27.18)
LENGTH ( 76.4" )

ap468583, 468583R2
AXLE, GANG - FOR MODEL 470, 475, 480, 490 & 496. (wt., 28.00)
LENGTH ( 79.4" )

ap481844, 481844R1
AXLE, GANG - FOR MODEL 470, 490 & 496 IH DISC. (wt., 30.00)
LENGTH ( 85.5" )

ap487168, 487168R1
AXLE, GANG - FOR MODEL 470, 475, 480, 490 & 496. (wt., 33.00)
LENGTH ( 94.6" )

ap58829 58829C1
AXLE, GANG - FOR MODEL 480 & 496 IH DISC. (wt., 36.00)
LENGTH ( 103.4" )

ap546831, 546831R1
AXLE, GANG - FOR MODEL 490 IH DISC. (wt., 39.00)
LENGTH ( 112.7" )

ap57000, 57000C1
AXLE, GANG - FOR MODEL 490 & 496 IH DISC. (wt., 43.00)
LENGTH ( 121.8" )

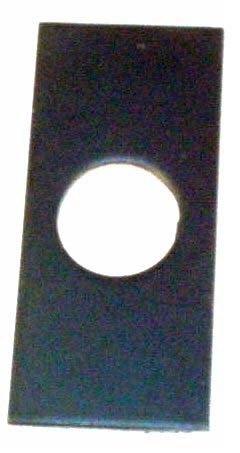

(1) ap34101, P34101
LOCK WASHER (bend Over), GANG BOLT LOCK (plated). (wt., .15)

(2) ap220089, 220089
hex NUT, GANG AXLE - FOR MODEL 470, 475, 480, 490 & 496. (wt., .38)

ALL AXLES ARE MEASURED BELOW THE HEAD

NEXT
