Replacement Parts for CASE - INTERNATIONAL DISC

(2)

(4)

(1)

(3)

(3a)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(15)

(12)

(13)

(14)

Note: All Item Numbers and OEM Numbers are higlighted in Red to help the viewer to pick out the correct part. All part numbers and descriptions are listed in black to match the appropriate items. All Descriptions and Dimensions are listed underneath the part number. PLEASE DO NOT give us the OEM number when ordering a part.

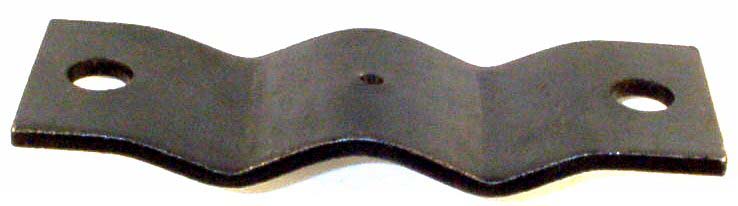

(1) AP652815 , 652815R1
CLAMP, TOP - FOR MODEL 37, 45, 330, 350, 370, 480, 485 & 490
IH DISC TRANSPORT WHEEL AXLE ASSEMBLY. (wt., 7.15)

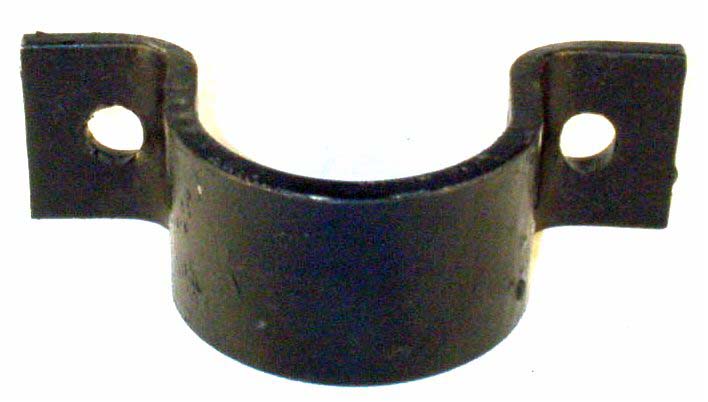

(2) AP652816, 652816R1
U-CLAMP, BOTTOM - FOR MODEL 480 IH DISC TRANSPORT WHEEL AXLE ASSEMBLy. works with ap652815. (wt., 2.95)

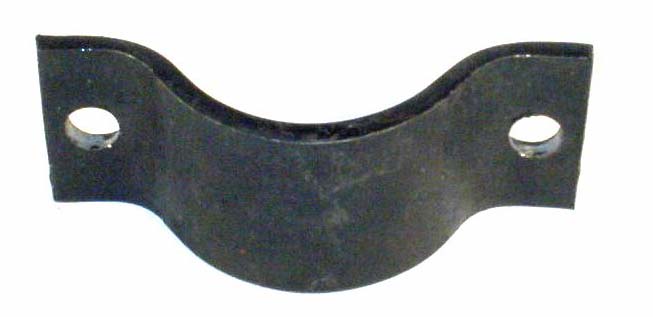

(3) AP540979, 540979r1
CAP, WHEEL BEARING - FOR MODEL 490-496 IH DISC. (4 PER DISC) (wt., 2.99)

(3a) AP54097a, 540979r1
CAP, WHEEL BEARING - FOR MODEL 490-496 IH DISC. (4 PER DISC)

(4) ap491921, 491921r1
Bearing, wheel shaft - FOR MODEL 480, 490-496 IH. DISC (4 PER DISC) (wt., 7.05)

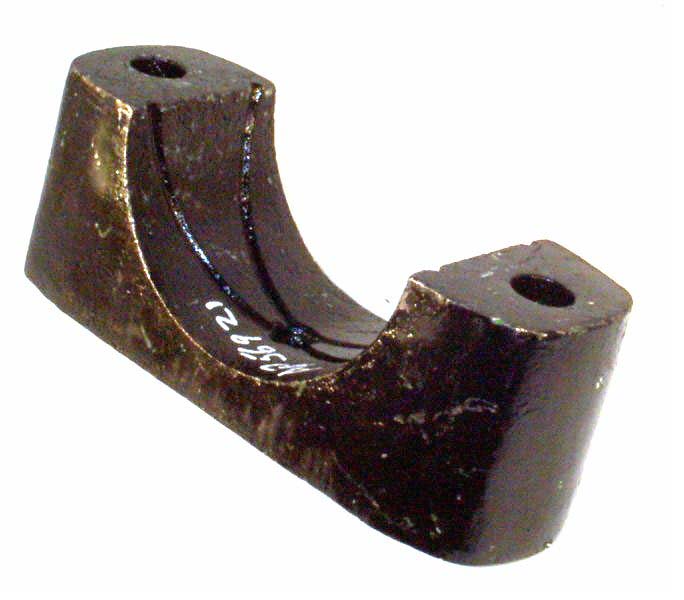

(5) Ap56921, 56921c1
Wheel shaft, bearing for 485, 490 and 496. (wt., 11.73)

(6) ap277726, 277726
Bearing cap (ductile) use with ap56921. (wt., 5.72)

(7) ap486789, 486789r1
Wing latch kit - manual fold 470-480. (boxed) (wt., .59)

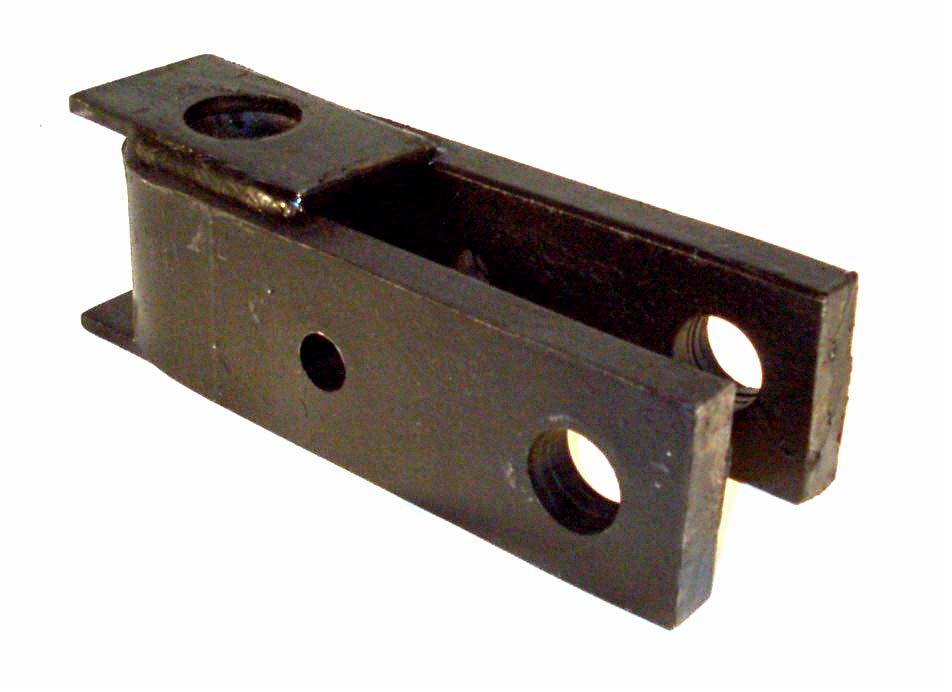

(8) ap468546, 1333760c1
CLEVIS, HITCH - FOR MODEL 470, 475, 480 & 500 DISC. (wt., 9.99)

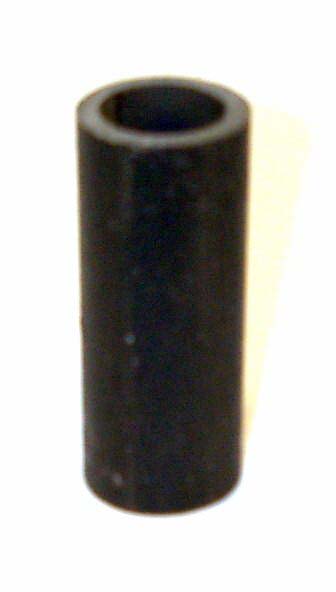

(9) ap468548, 468548R1
BUSHING, CLEVIS - FOR MODEL 468546R11 CLEVIS. (wt., .56)

(10) ap468528, 468528R2
BUSHING, TONGUE - FOR MODEL 470, 480 & 500 DISC. (2 PER DISC) (wt., .15)

(11) ap23729r1, 23729r1
Turn buckle pin for 490 disc. (wt., .56)

(12) ap60423c3, 60423c3
Male half, turn buckle for 490 disc. (wt., 2.26)

(13) ap60420c2, 60420c2
Female half, turn buckle for 490 disc. (wt., 3.71)

(14) ap490, —
Complete turn buckle assembly. (wt., 5.87)
