Replacement Parts for CASE - INTERNATIONAL DISC

(2)

(3)

(4)

(5)

(1)

(8)

(6)

(7)

(9)

(10)

(13)

(14)

(12)

(15)

(11)

Note: All Item Numbers and OEM Numbers are higlighted in Red to help the viewer to pick out the correct part. All part numbers and descriptions are listed in black to match the appropriate items. All Descriptions and Dimensions are listed underneath the part number. PLEASE DO NOT give us the OEM number when ordering a part.

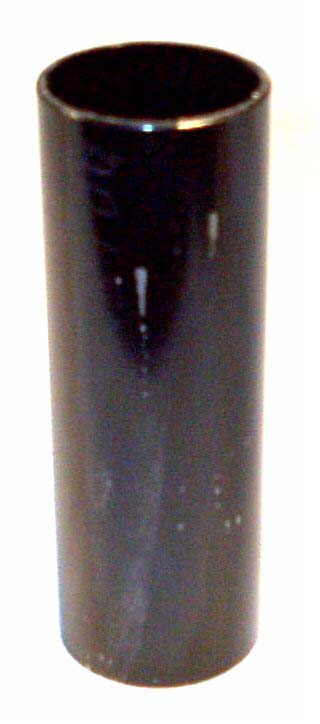

(1) AP652383, 652383r1
5-1/16" Sleeve for model 470 & 480 disc w/7-1/2" spacing. (11 ga. Tubing) (wt. .38)

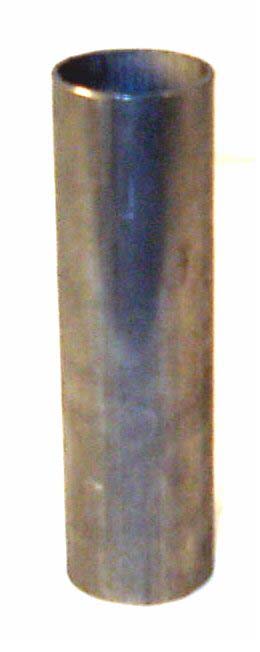

(2) AP472594, 472594r1
6-1/16" sleeve for model 470 & 480 disc w/9" spacing. (11ga. tubing) (wt. .61)

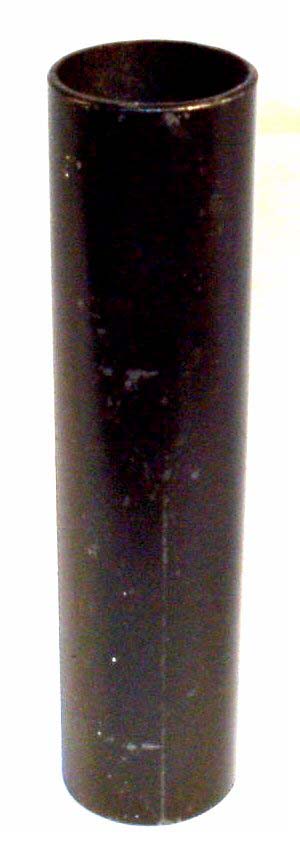

(3) AP652412, 652412R1
7-1/4" sleeve for model 490 disc with 7-1/2" spacing. (11 ga. tubing) (wt. .53)

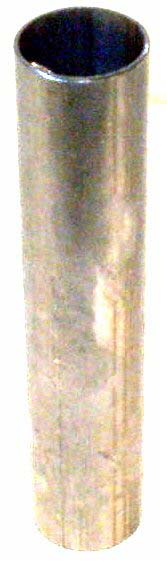

(4) AP112410, 112410C1
8-3/4" sleeve for model 470, 475, 480, 485, 490 & 495 disc w/9" spacing. (wt. .64) (11 ga. Tubing)

(5) AP34102, P34102
1/4" slack washer round hole (plated). (wt. 1.02)

(6) AP34103, —
WASHER, 1/4" GANG BOLT SLACK - WITH SQUARE HOLE (plated) (wt. 1.06)

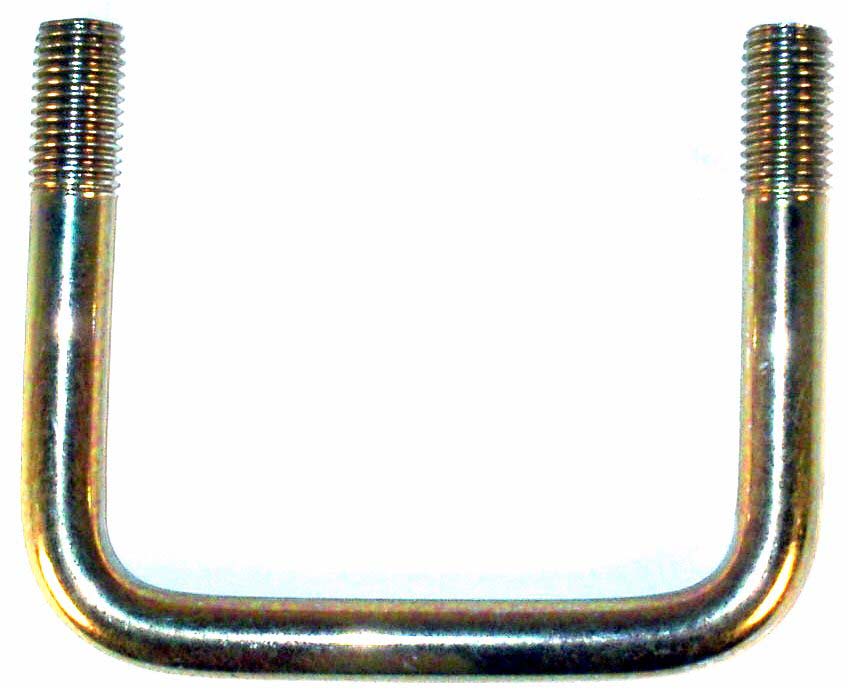

(7) ap56996, 56996c1
plated u-bolt for steel gang standard on 490. (wt. 1.51)

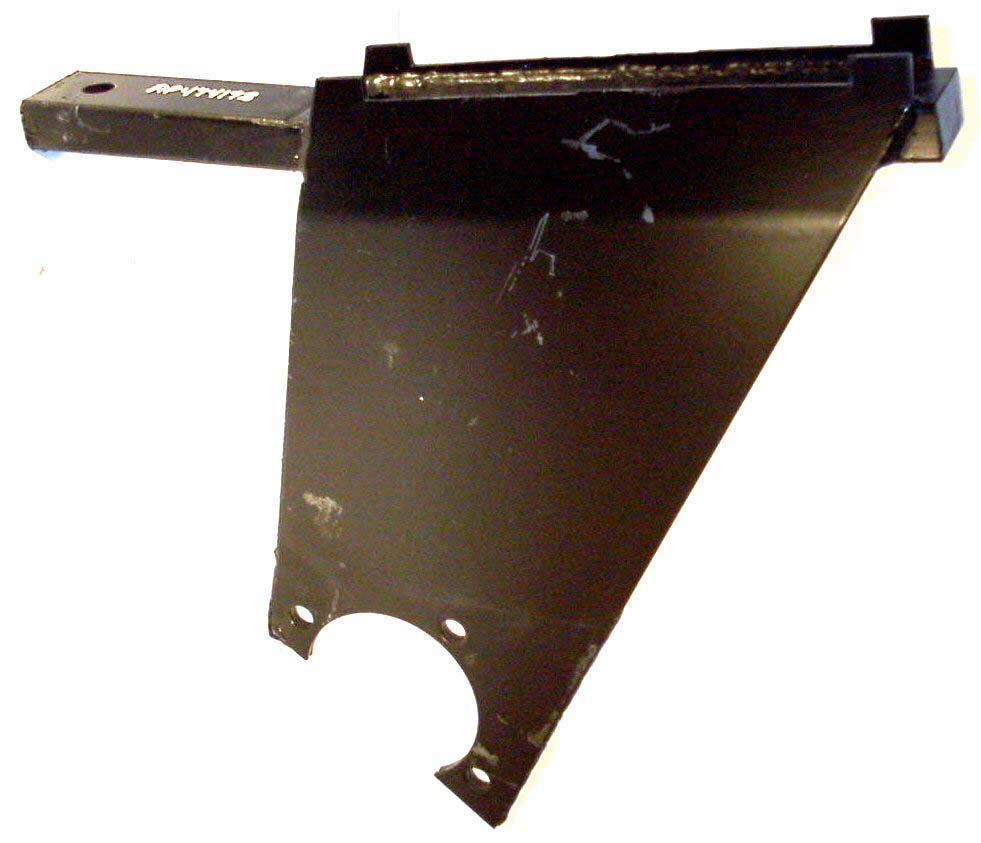

(8) AP474178, 474178R92
STANDARD, GANG BEARING - FOR MODEL 480 IH DISC (wt. 21.16)

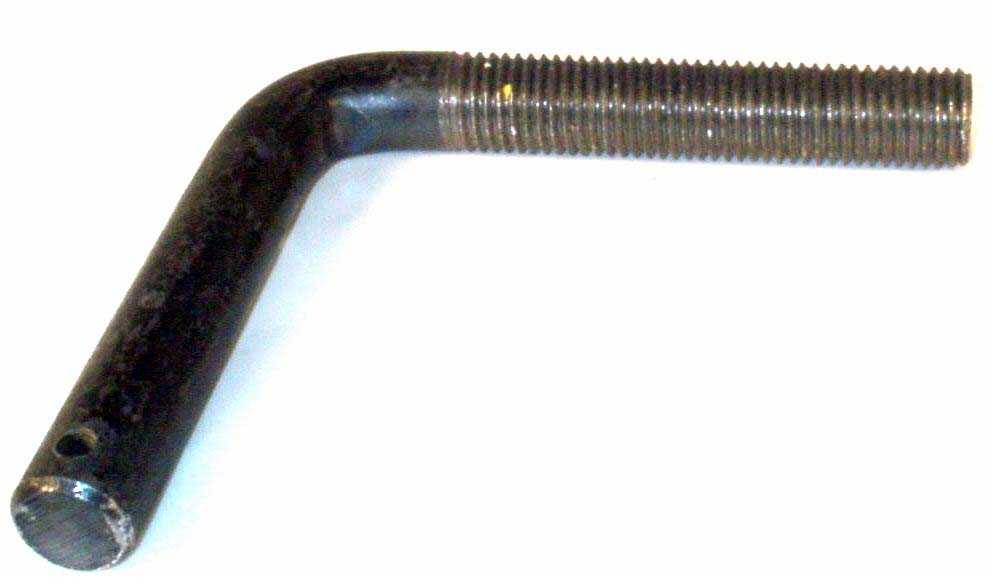

(9) ap468603, 468603r1
l-bolt for gang adjustment, models 48, 150, 470, 480 & 500 disc. (plated) (wt. 1.48)

(10) AP129532, 129532c2
Gang bearing standard for Model 490, 496, 3800 and 3900. (wt. 15.03)

(11) ST491, —
BEARING, IMPORT GANG, for models 37, 46, 48, 60, 61, 120, 130, 132, 150, 330, 350, 370, 470, 475, 480, 485, 490, 610, 760, 3800, 3900. (wt. 3.25)

(12) st2112316, st740b
Disc bearing for 500, 501, 596 & 770 models. (wt. 1.38)

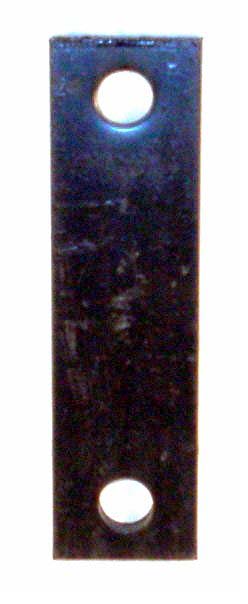

(13) ap56987, 56987c1
Bar, link 490 disc. (wt. 2.99)

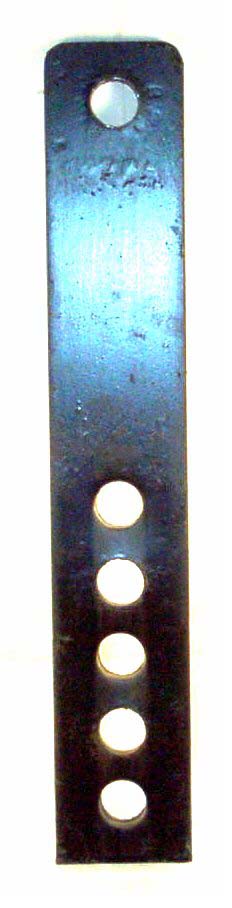

(14) AP56986, 56986c1
Adjusting, bar 490 disc transport axle assembly. (wt. 4.80)

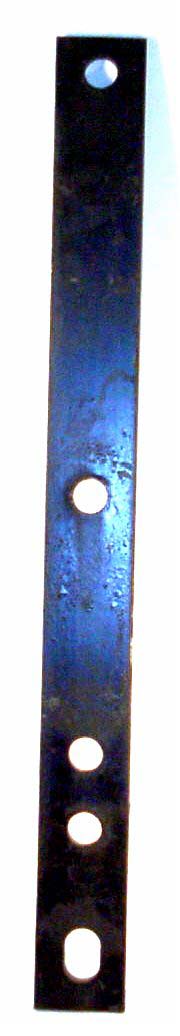

(15) ap56985, 56985c1
Bar, transport 490 disc. (wt. 9.07)
