Replacement Parts for CASE - INTERNATIONAL DISC

(1)

(2)

(3)

(4)

(5)

(6)

(7) (8)

(9)



(10)

(11)

(12)



(13)

(14)



Note: All Item Numbers and OEM Numbers are higlighted in Red to help the viewer to pick out the correct part. All part numbers and descriptions are listed in black to match the appropriate items. All Descriptions and Dimensions are listed underneath the part number. PLEASE DO NOT give us the OEM number when ordering a part.

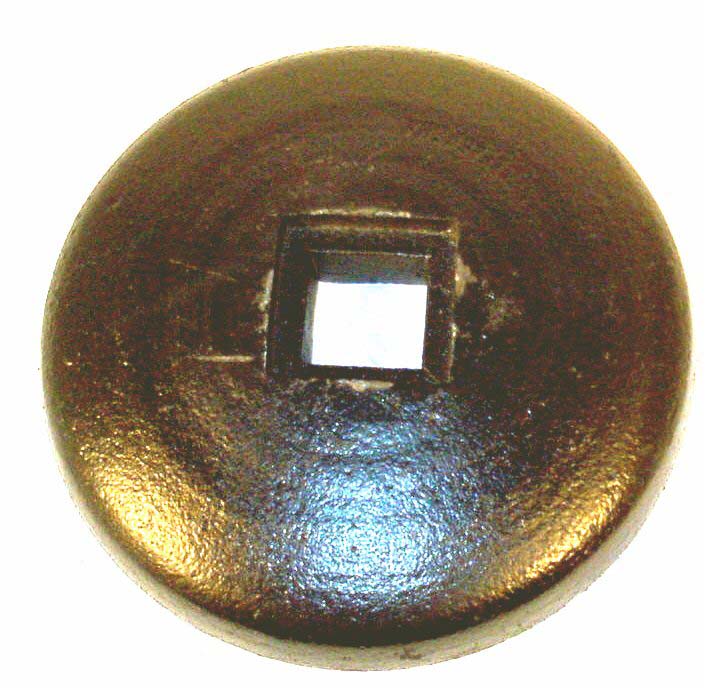

(1) AP468584, 468584r2
 washer, bumper - for model 46, 48, 150, 330, 350, 370, 470,475,480, 485, 490 and 496 case ih discs. (wt. 7.95)

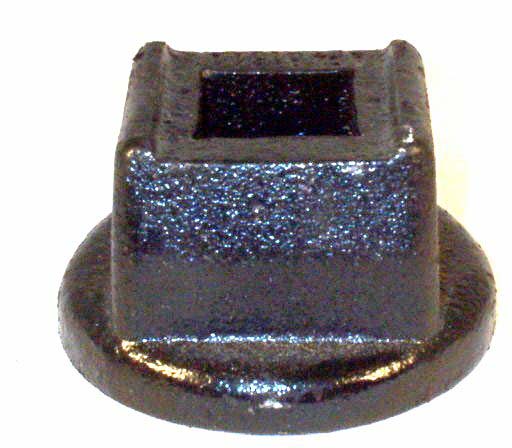

(2) AP481611, 481611r1
 washer, end - for model 132, 150, 330, 350, 370, 470, 475, 480, 485, 490 and 610 case ih discs. (wt., 2.49)

(3) AP4167, pa4167
 end washer for same models as above. (wt., 2.09)

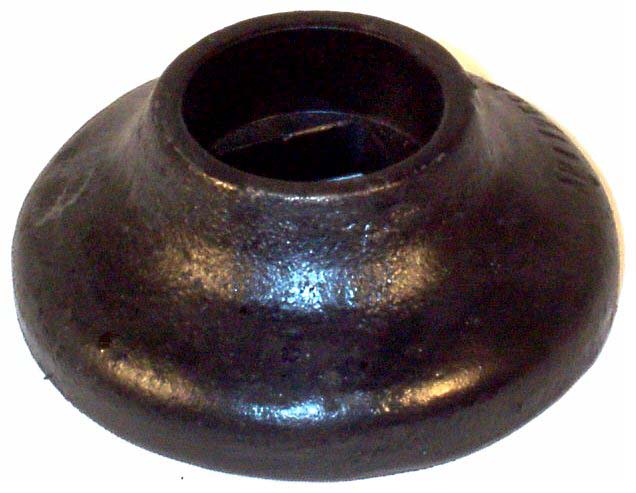

(4) AP472592, 472592r3
spool, 1 5/8" square hole (old style) - for model 37, 46, 48, 60, 61, 120, 122, 130, 132, 150, 330, 350, 370, 470 & 480 ih disc with 7 1/2" spacing.
(wt., 2.64) bearing surface is machined

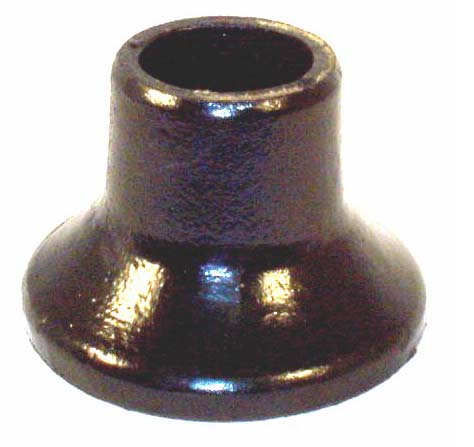

(5) AP472593, 472593r3
spool, 3" square hole (old style) - for model 37, 46, 48, 60, 61, 76, 120, 122, 130, 132, 150, 330, 350, 370, 470, 480, 610 and 760 ih disc with 9" spacing. (wt., 3.74) bearing surface is machined

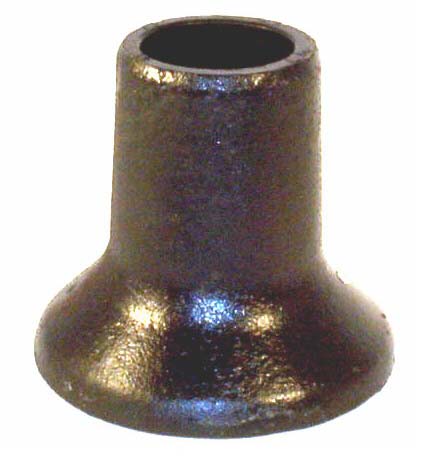

(6) AP472591, 472591r3
 spool, 4" square hole (old style) - for model 37, 46, 48, 60, 61, 76, 120, 122, 130, 132, 150, 330, 350, 370, 470, 480, 610 and 760 ih disc with 7 1/2" & 9" spacing. (wt., 4.27) bearing surface is machined

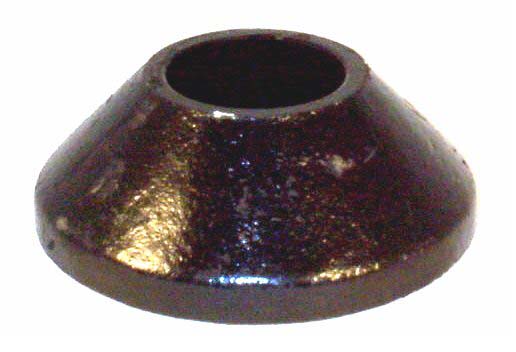

(7) AP101189, 101189c1
spool, 1 5/8" round hole (new style) - for model 350, 370, 470,475, 485, 490, 496, 3800 & 3900 ih disc with 7 1/2". spacing (wt., 3.01) bearing surface is machined

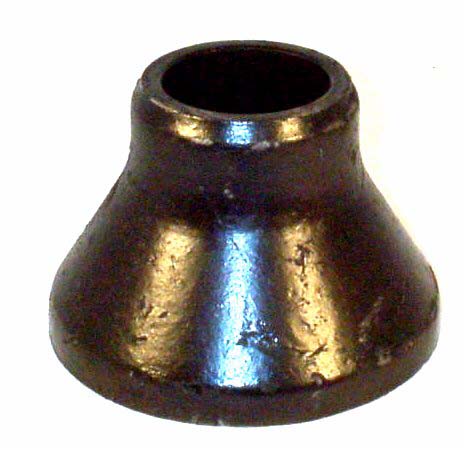

(8) AP101190, 101190c1
spool, 3" round hole (new style) - for model 132, 350, 475, 485, 490, 496, 3800 & 3900 ih disc with 9" spacing. (wt., 3.45) bearing surface is machined

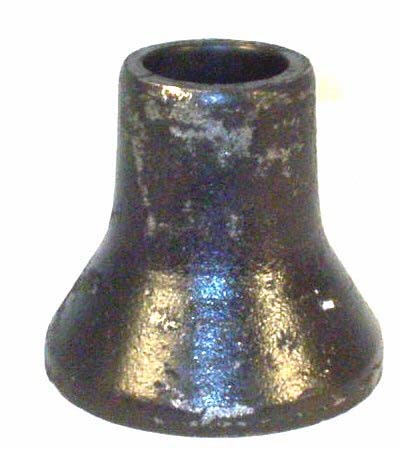

(9) AP101191, 101191c1
spool, 4" round hole (new style) - for model 132, 350, 370, 470, 475, 485, 490, 496, 3600 & 3900 ih disc with 7 1/2" & 9" spacing. (wt., 3.85) bearing surface is machined

(10) AP481416, 481416R1
SPOOL, 7 1/2" SQUARE HOLE - FOR MODEL 46, 48, 60, 61, 120, 122, 130 132, 150, 330, 350, 370, 470, 475, 480 485, 490 & 496 IH DISC WITH 7 1/2" SPACING.
(wt., 8.16) Blade SURFACES ARE MACHINED

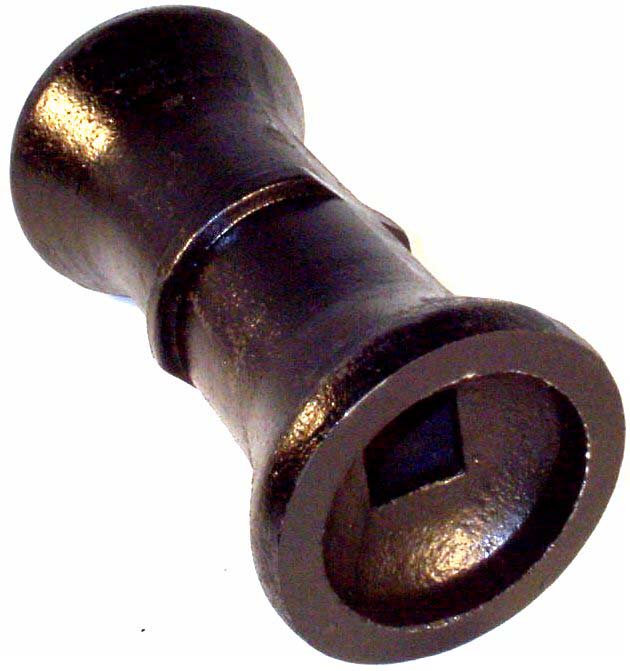

(11) AP481417, 481417R1
SPOOL, 9" SQUARE HOLE - FOR MODEL 37, 46, 48, 60, 61, 120, 122, 130, 132, 150, 330, 350, 370, 470, 475, 480, 485, 490 & 496 IH DISC WITH 9" SPACING. (wt., 10.26) Blade SURFACES ARE MACHINED

(12) ap139918, 139918c1
9" - 1 1/2" round hole, for model 3800,3900 & 3950. (wt., 10.51) machined

(13) ap549977, 549977r1
spool for model 500, 501, 596 disc. 4 1/8" x 1 1/2" square. (wt., 9.44) machined surfaced

(14) ap549971, 549971r1
5 7/8" sleeve for ap549977 spool. (wt., 1.38)
