Replacement Parts for JOHN DEERE DISC

THE FOLLOWING PARTS FOR ALL JOHN DEERE MODEL #'s 210, 215, 220, 230, 235 & 630 DISCS



(1) (2)

(3)

(4)

 (5)

(6)

(7)

(8)

(9)

(10)
(11)



(12)



(13) (14)



 (15)

Note: All Item Numbers and OEM Numbers are higlighted in Red to help the viewer to pick out the correct part. All part numbers and descriptions are listed in black to match the appropriate items. All Descriptions and Dimensions are listed underneath the part number. PLEASE DO NOT give us the OEM number when ordering a part.

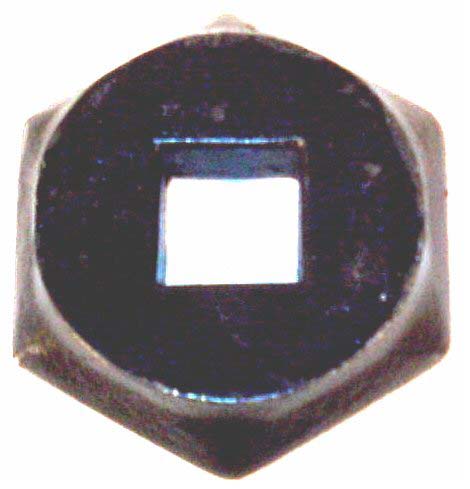

(1) ap25694, A25694
WASHER, BUMPER. also for models 110, 111 and 115. (wt., 2.42)

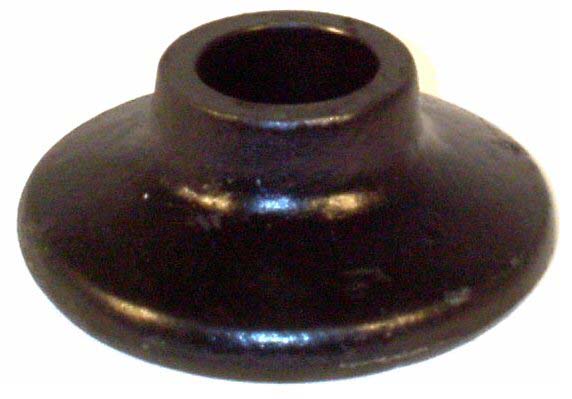

(2) ap241315, A20621
SPOOL, 1 7/8" - FOR MODELS WITH 7 1/4" & 9" SPACING n241315 new style spool . (wt., 4.53)

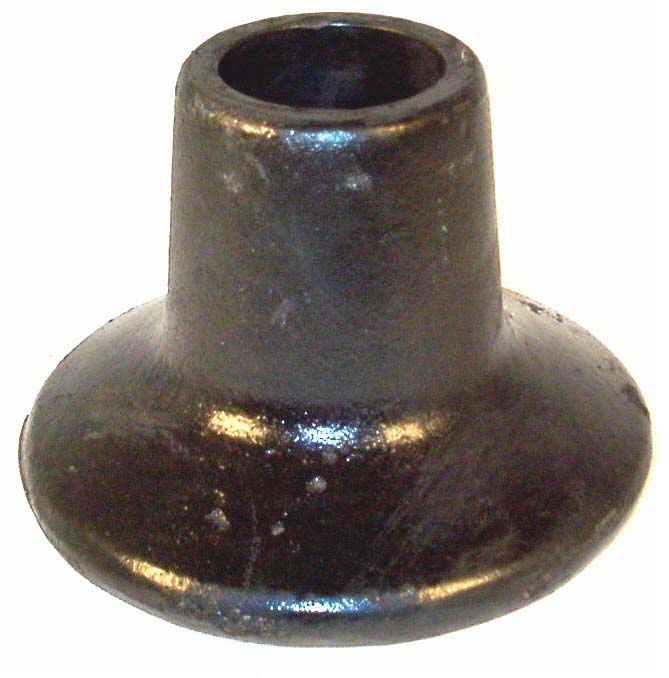

(3) ap241318, A20622
SPOOL, 3 7/8" - FOR MODELS WITH 7 1/4" SPACING n241318 new style spool. (wt., 6.43)

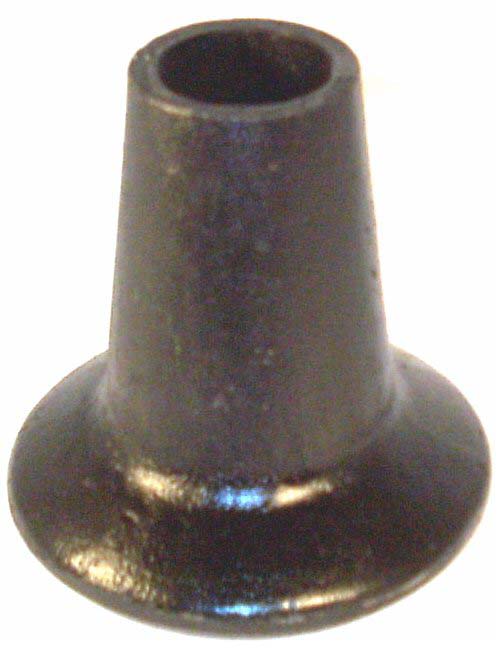

(4) ap241314, A37023
SPOOL, 5 1/2" - FOR MODELS WITH 9" SPACING n241314 new style spool. (wt., 7.62)

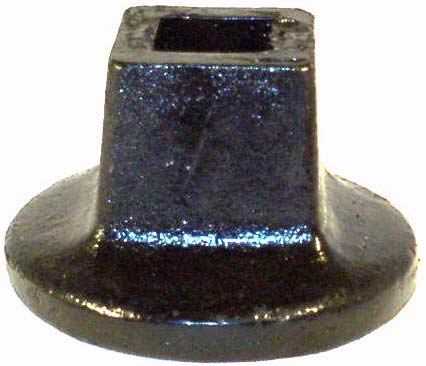

(5) ap37024, n241320
WASHER, END. (wt., 4.01)

(6) ap240518, AN183629
SPOOL, DOUBLE - FOR MODELS WITH 9" SPACING, heavy duty. (wt., 7.30)

(7) ap183748 AN183748
SPOOL, DOUBLE - FOR Models WITH 7 1/4" SPACINg, heavy duty. (wt., 2.71)

(8) ap20647, A20647
SLEEVE, 6 11/16" - FOR MODELS WITH 7 1/4" SPACING use with ap241315 & ap241318 spools. (Sames GA. as oem.) (wt., 0.48)

(9) ap20648, A20648
SLEEVE, 8 7/16" - FOR MODELS WITH 9" SPACING use with ap241315 & ap241318 spools. (same GA. as oem.) (wt., 0.96)

(10) ap34103, —
WASHER, SLACK - 1 1/8" SQUARE HOLE (1/4" THICK) plated. (wt., 1.06)

(11) ap34102, —
WASHER, SLACK - 1 1/2" round HOLE. (1/4" THICK) plated. (wt., 1.02)

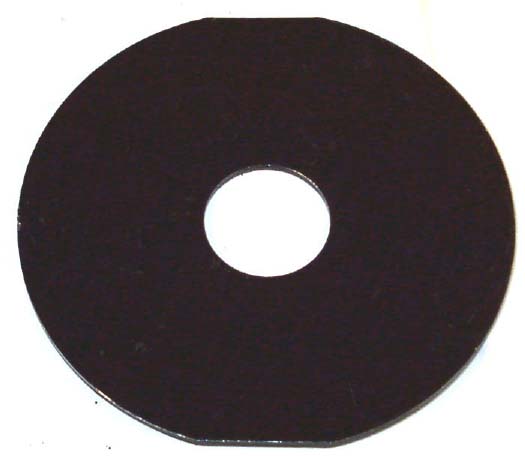

(12) ap241313, n241313
washer, Jd nut seat 210, 220, 230, 235, 630, 637. (wt., 1.07)

(13) ap20441, a20441
bumper washer, rear 630 disc.(wt., 4.91)

(14) apb11650, b11650
bumper washer, front 630 disc.(wt., 6.12)

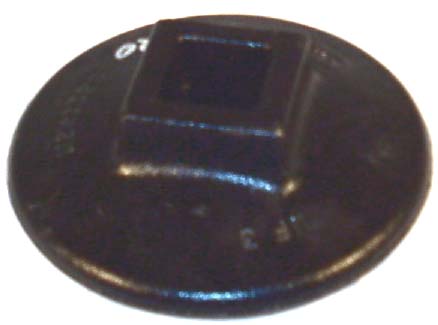

(15) ap241320,N241320
bumper washer. (wt., 4.13)
