Replacement Parts for JOHN DEERE DISC

THE FOLLOWING PARTS FOR ALL JOHN DEERE MODEL #'S 210, 215, 220, 230, 235 & 630 DISCS



(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10) (11)

(12)

Note: All Item Numbers and OEM Numbers are higlighted in Red to help the viewer to pick out the correct part. All part numbers and descriptions are listed in black to match the appropriate items. All Descriptions and Dimensions are listed underneath the part number. PLEASE DO NOT give us the OEM number when ordering a part.

(1) ap241200, n241200
Gang standard, right hand 630,637 disc. (wt., 18.50)

(2) AP241201, n241201
Gang standard, left hand 630,637 disc. (wt., 18.50)

(3) AP28474, A28474
Wear guard - for 630 disc BEARING, also FITS jd MODEL 400, 600, 610 & 810 FINISHING HARROWS ALSO FITS IH, NOBLE & WIL-RICH DO-ALLS. (wt., 1.50)

(4) AP241202, n241202
Gang standard, hook-bolt for models 630, 635 and 637 disc. (wt., 1.42)

(5) AP240015, n240015
Scraper bracket hook-bolt for model 630, 635 and 637 disc. (wt., 0.30)

(6) AP20006, a20006
BLADE, Scraper - FOR MODEL 110, 111, 115, 210, 220, 230 disc. (wt., 1.47)

(7) AP38364, a38364
BLADE, SCrAPER - FOR MODEL 215, 235 & 630 DISC. (wt., 1.58)

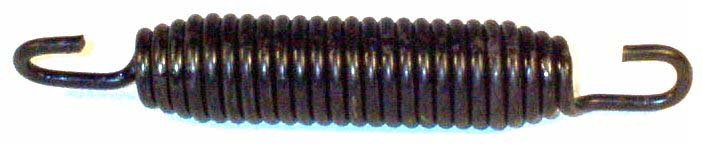

(8) AP242189, n242189
Spring for scraper ap38364. (wt., 0.45)

(9) a35642, aa35642
Roll pin for ap38364 scraper. (wt., 0.02)

(10) p280886, an240886
SCRAPER ARM, rh SIDE FOR 630 DISC. (wt., 2.77)

(11) p280887, an240887
 SCRAPER ARM, lh SIDE FOR 630 DISC. (wt., 2.77)

(12) ap220089, —
 Nut for axles.

ALL AXLES ARE 1 1/8" SQUARE

AP20133, A20133
AXLE, - FOR MODEL 230, 235 & 630 john deere disc, LENGTH ( 50.7")
(wt., 18.08)

AP20134, A20134
AXLE, - FOR MODEL 230, 235 & 630 john deere disc, LENGTH ( 59.7")
(wt., 21.20)

AP20615, A20615
AXLE, - FOR MODEL 230, 235 & 630 john deere disc, LENGTH ( 68.7")
(wt., 23.91)

AP20616, A20616
AXLE, - FOR MODEL 230, 235 & 630 john deere disc, LENGTH ( 77.7")
(wt., 27.57)

AP20617, A20617
 AXLE, - FOR MODEL 230, 235 & 630 john deere disc, LENGTH ( 87.0")
(wt., 30.43)

AP40826, A40826
AXLE, - FOR MODEL 230, 235 & 630 john deere disc, LENGTH ( 95.7")
(wt., 33.52)

AP40827, A40827
AXLE, - FOR MODEL 230, 235 & 630 john deere disc, LENGTH ( 104.75")
(wt., 36.41)
