Replacement Parts for CASE - INTERNATIONAL DOALL / FINISHING HARROW
(2)
(4)
(1)
(3)
(7)
(10)
(6)
(8)
(9)
Note: All Item Numbers and OEM Numbers are higlighted in Red to help the viewer to pick out the correct part. All part numbers and descriptions are listed in black to match the appropriate items. All Descriptions and Dimensions are listed underneath the part number. PLEASE DO NOT give us the OEM number when ordering a part.
(1) ap2029, 62559C1
SPRING, DRAG BOARD - FOR MODEL 468 & 568 IH FINISHING HARROW & DO-ALLS, ALSO FITS JD, NOBLE & WIL-RICH
DO-ALLS. (wt., 12.53)

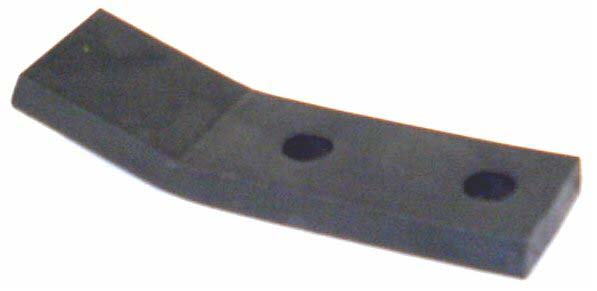

(2) ap186301, 112509C1
PLATE, REINFORCEMENT - FOR ap6259 BOARD SPRING ON MODEL 468 & 568 IH FINISHING HARROW AND DO-ALLS, ALSO FITS IH, NOBLE & WIL-RICH DO-ALLS. (wt., 1.37)
(3) ap500276, 62557c1
BOARD, DRAG - FOR MODEL 468 & 568 IH FINISHING HARROW & DO-ALLS,
ALSO FITS JD, NOBLE AND WIL-RICH DO-ALLS. (LENGTH
78") (wt., 40.23)
(4) 943549, 549962r1
lug bolt for ap62509. (wt., .12)

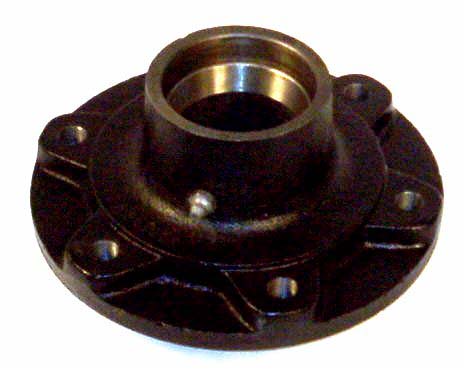

(5) ap62509, 62509C1
HUB, TRANSPORT WHEEL - FOR MODEL 468 & 568 IH FINISHING HARROW & DO-ALLS, ALSO FITS JOHN DEERE, MCKEE, NOBLE & WIL-RICH DO-ALLS. (wt., 9.46)

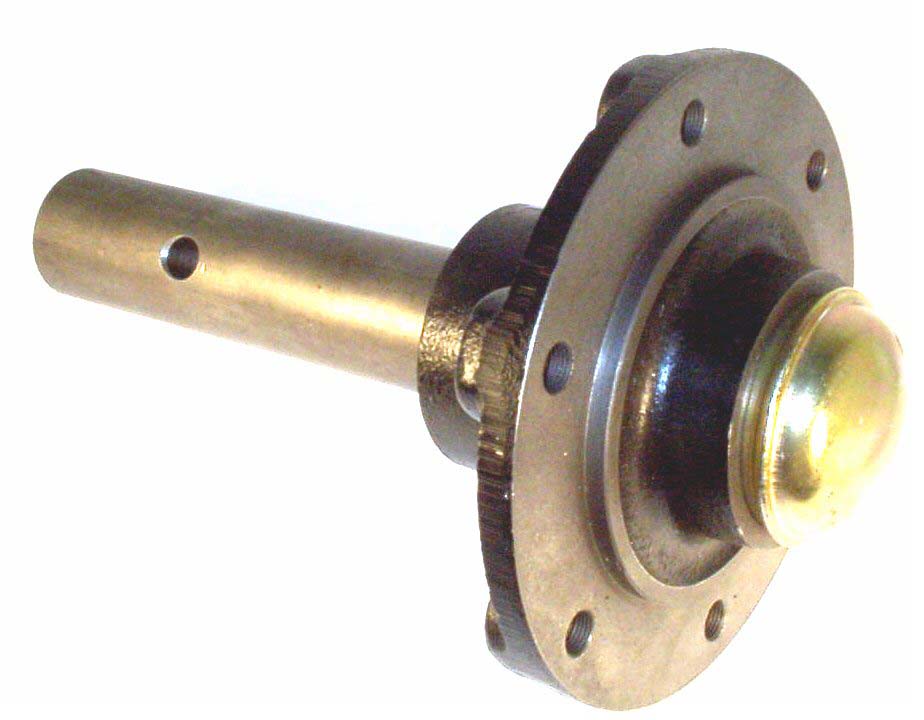

(6) ap62509c, —
hub & spindle complete assembly.

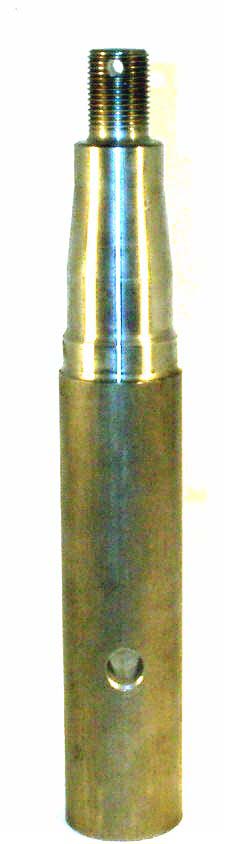

(7) ap6029s, 138573c1
SPINDLE, - FOR MODEL 468 & 568 IH FINISHING HARROW, ALSO FITS JOHN DEERE, MCKEE, NOBLE & WIL-RICH
DO-ALLS. (wt., 6.14)
(8) 912952, 138573c1
nut for ap6029s.

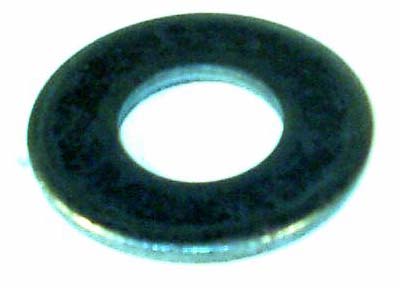

(9) 913607, 446265
washer for ap6029s.(wt., .10)
(10) apk1003, —
KIT, BEARING - FOR ap62509 TRANSPORT WHEEL
HUB. (wt., 1.25)
contains:
lm29710 478793r1 inner cup
lm29749 160558c91 inner cone
lm67010 651817r1 outer cup
lm67048 651818r91 outer cone
16284 56514c1 seal
909905 62510c1 dust cap
