John Deere Parts

Replacement Parts for JOHN DEERE DISCS
THE FOLLOWING PARTS FOR JOHN DEERE MODELS 235 & 630 (AND OTHER DISCS)
(1)	(2)	(3)	(4)	(5)	(6)
(7)	(8)	(9)	(10)	(11)	(12)
(13)	(14)	(15)	(16)	(17)	(18)
Note: All Item Numbers and OEM Numbers are higlighted in Red to help the viewer to pick out the correct part. All part numbers and descriptions are listed in black to match the appropriate items. All Descriptions and Dimensions are listed underneath the part number. PLEASE DO NOT give us the OEM number when ordering a part.

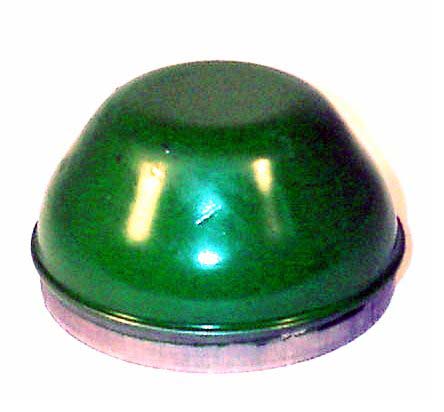

(1) ap27616, a27616 235-transport hub, for models 115, 200, 210, 220, 230, 310, 330, 335, 360, 370, 440, 455, 1630 and 1640. (bearing not included). (wt.,10.18) (2) AP235s, aa24325 spindle for ap27616 hub. (wt., 8.89) (3) AP27616bk, — Bearing kit for ap27616 hub containing: (wt., 2.28) 88107bgg, jd9301: Iinner and outer bearing (2) ap2613, 28h2613 : Spacer ap27618, a27618 : Dust cap ap27617, A27617 : Snap ring(2) (4) ap27616c, — Hub & spindle assembly complete. (boxed) (5) 913607, D10134 SPINDLE WASHER FOR AP24325. (wt., 0.10) (6) 913538, JD16 LUG BOLT, 9/16"X 1-1/8" FOR AP27616 & AP183318 HUBS. (wt., 0.15) (7) 1SAENLN, — LOCK NUT FOR AP235S SPINDLE. (wt., 0.27) (8) ap183318, AN183318 HUB FOR 630 DISC TRANSPORT.(wt., 9.04) (9) AP630S, — SPINDLE FOR AP183318 HUB. (10) AP630RK, — SPINDLE KIT, CONTAINS 2 SPINDLES, TUBE.(wt., 30.00) (11) AP630RKC, — SPINDLE AND HUB KIT COMPLETE CONTAINS: 2 SPINDLES, 2 HUBS, WELD TUBE AND BEARINGS. (wt.,48.00) (12) AP630WT, — WELD TUBE ONLY (HEAVY 3" DOM). (wt., 19.77) (13) APK183318, — KIT, BEARING FOR 630 DISC CONTAINING: (wt., 1.23) LM67048, jd8187: OUTER BEARING LM67010, JD8225: OUTER CUP LM29710, JD8271: INNER CUP LM29749, JD8988: INNER BEARING also contains: apah20017 seal, apb30887 retainer, ap10025 cap. (14)* AP20017, AH20017 SEAL.(wt., 0.03) (15) APB30887, D10134 RETAINER. (wt., 0.03) (16) AP10025, D10025 DUST CAP. (wt., 0.23) (17) 912952, 14H1086 NUT FOR AP630RKS SPINDLE. (wt., 0.15) (18) ap27618, a27618 Dust cap 235 hub. (wt., 0.07)
